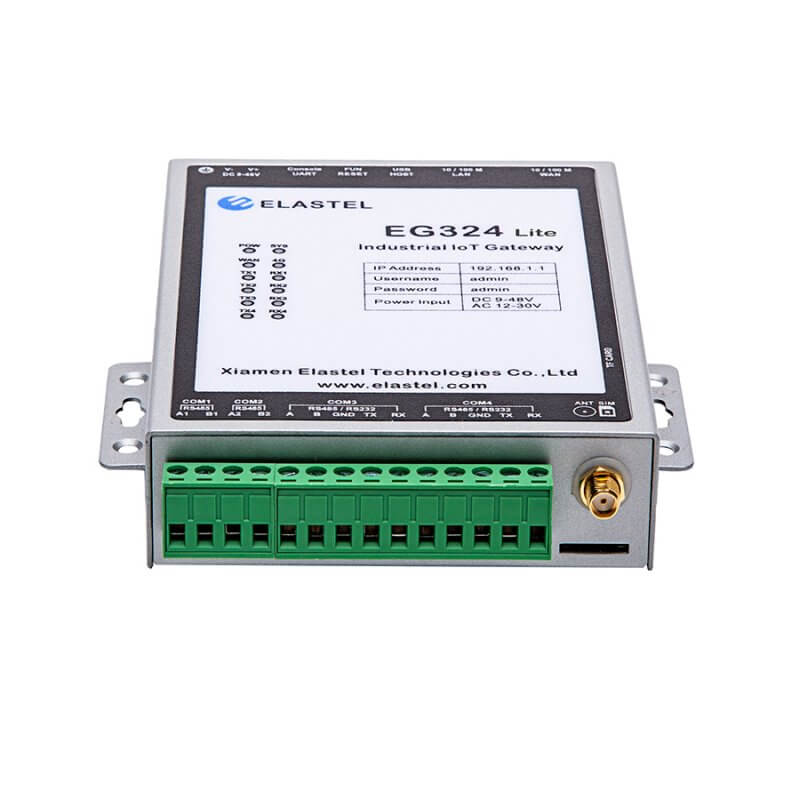

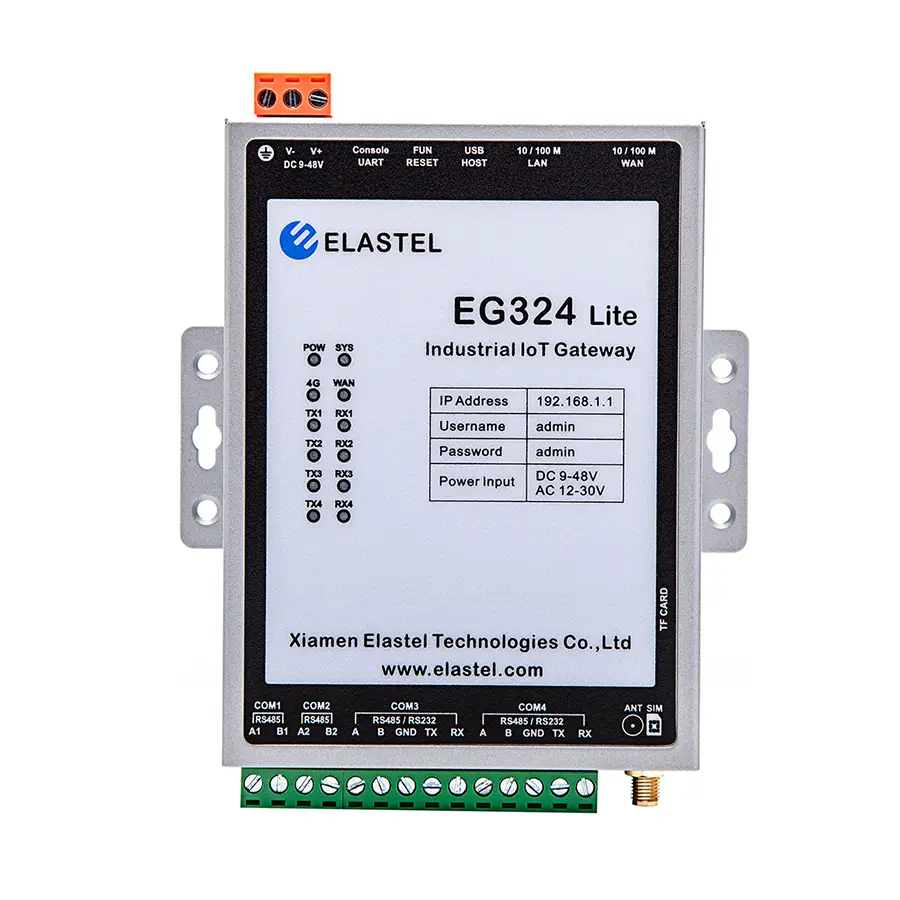

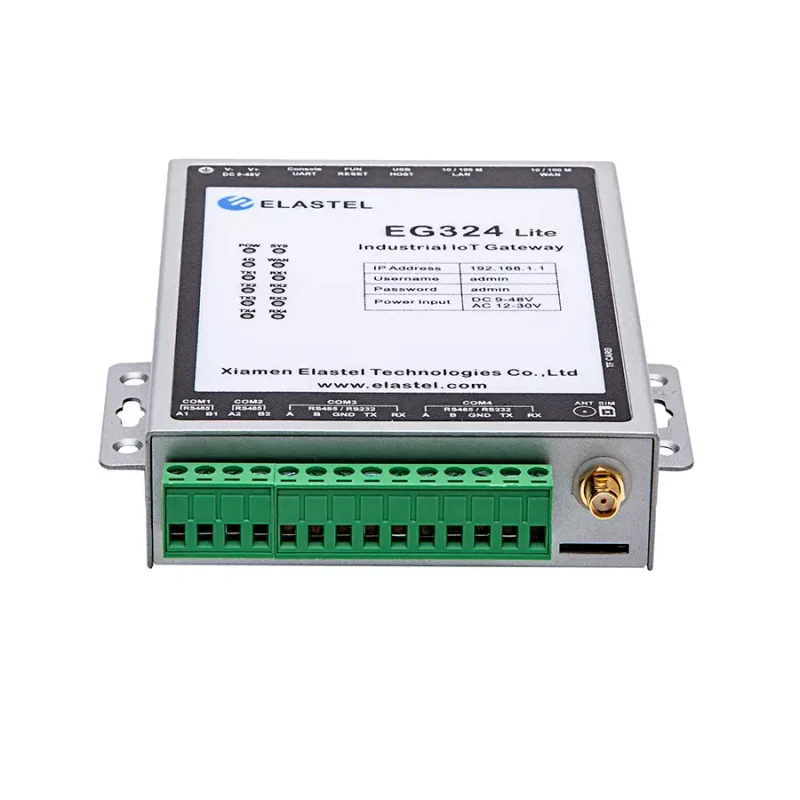

EG324 Lite IoT Gateway
$155.00 – $199.00
The Elastel EG324 Lite IoT Gateway is an ARM-based IoT gateway reduced CPU and RAM capabilities from EG324 for balancing sufficient performance and cost saving.
- ★ ARM Dual-core A35@800MHz CPU, 128MB RAM + 8GB eMMC
- ★ 4x Isolated RS485/RS232 for industrial data acquisition
- ★ Dual auto-sensing 10/100 Mbps Ethernet
- ★ Mini-PCIe slot for 4G LTE/3G/2G/NB-IoT/Cat M1 Cellular Network
- ★ Linux OS with prebuilt Web-based data acquisition programs
These features allow EG324 Lite easy be configured and large-scale deployments for data acquisition, remote monitoring and communication… applications.
Description
The EG324 Lite is an Arm-based high-performance industrial gateway. Compared with EG324 model, EG324 Lite has reduced CPU and RAM capabilities for optimized and balance sufficient performance and cost saving.
It provides an ARM dual-core A35 @ 800MHz CPU, 128MB RAM + 8GB eMMC hardware computing platform, comes with 4 x RS485/232 serial ports, dual 10/100 Mbps Ethernet ports, and a Mini-PCIe socket for 4G LTE/3G/2G/Cat M1/NB-IoT cellular modules.
Leverage the Linux OS, pre-built common data acquisition drivers like Modbus, MQTT, OPC UA, and a WebUI for easy configuration and programming, the EG324 Lite is capable of easy and simple implementation for your various complex Industrial IoT solutions
Industrial-Grade Design
EG324 Lite adopts strict industrial grade standards in each electronic components and full structure design, to suit the wide temperature and Hazard in field, also coming with Rugged IP30 enclosure protection makes it ideal for the harsh environments.
Specification
| CPU | ARM Dual-core A35 @800MHz |
| Pre-installed OS | Linux 5.10 with webUI management system |
| DRAM | 128MB DDR3 |
| Storage Pre-installed | 8 GB eMMC |
| Storage Slot | SD slot x 1 |
| Serial Ports | 2 x RS485 + 2 x RS-232/485 |
| Ethernet Ports | 2 x Auto-sensing 10/100 Mbps ports (RJ45 connector) , 1x WAN, 1xLAN or 2xLAN configurable |
| Cellular module Slots | 1 x mPCIe slot for Cellular module |
| Number of SIMs | 1 |
| USB 2.0 | 1 x USB 2.0, type-A connector |
| Console Port | 1 x UART type-C connector |
| Buttons | 1x button for Reset and Upgrade |
| Power Input Voltage | 9 ~ 48 VDC, 12 ~ 30 VAC |
| Power Consumption | Working Mode: 6 W Peak Power: <10 W |
| LED Indicators | Power x 1, System (programmable) x1, Cellular WAN x1, WAN x1, COM trans x 8 (TX + RX) |
| Buzzer | Built-in buzzer x 1, for Warning alarm ( Programmable) |
| Alert Tools | External RTC (real-time clock) |
| Automatic Reboot Trigger | External WDT (watchdog timer) |
| Dimensions | 128.8mm×117mm×28mm (L×W×H) |
| Housing | Metal |
| Installation | DIN-rail mounting Wall mounting |
| Weight | 470 g (1.04 lb) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| OT-to-IT Protocols |
Modbus RTU/ASCII Master/Slave, Modbus TCP/IP Server/Client, SNMP, Siemense PLC S7, Mitsubishi FX serial, BACnet, MQTT, OPC UA... |
Check the Specifications Tab for more details.

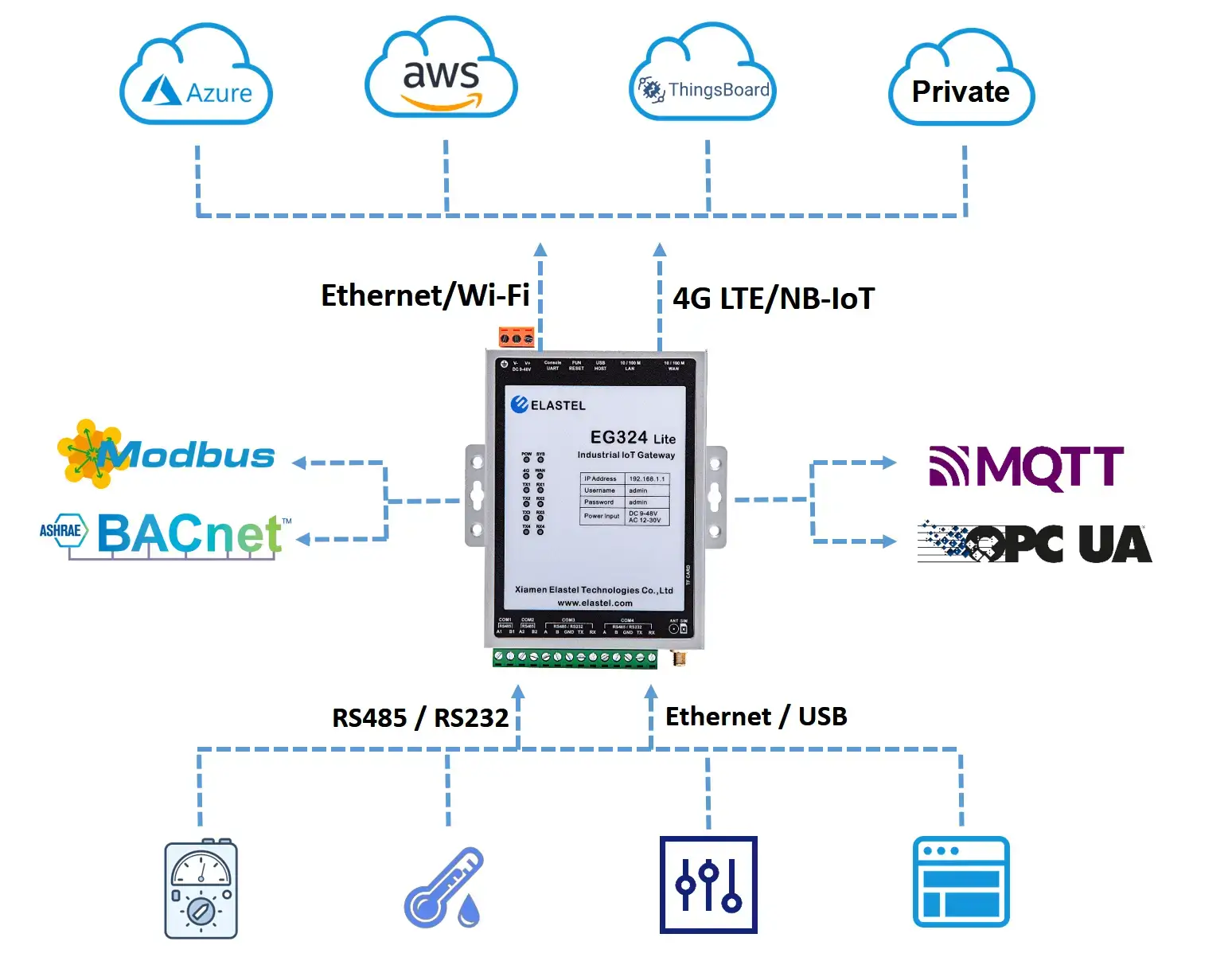

Applications
With high-performance, reliablity, easy-to-use, and cost-effective characteristics, also open Linux OS, EG324 Lite could be in any kinds of your applications.
Modbus Gateway
Support the Modbus RTU/TCP/ASCII protocols Data collecting from slave devices, convert and transmit to remote side. EG324 Lite could be the Modbus Gateway for your OT-to-IT solutions.
Industrial cellular Gateway
With a built-in mPCIe slot for cellular module, 2x 10/100 Mbps Ethernet ports, EG324 Lite can be configured as an industrial 4G modem or gateway. Easily remote access in by build a VPN ,DDNS, or Macchina service.
Specification
| System | |
| CPU | ARM Dual-core A35 @800MHz |
| Pre-installed OS | Linux 5.10 with webUI management programs |
| DRAM | 128MB (512MB optional) |
| Storage Pre-installed | 8 GB eMMC |
| Storage Slot | SD slots x 1 |
| Serial Interface | |
| Serial Ports | 2 x RS485 + 2 x RS-232/485 |
| Baudrate | 300 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
| Protection | Surge 4KV ESD ±15kV IEC61000-4-2 Air Discharge ESD ±15kV Human Body Model |
| Ethernet Interface | |
| Ethernet Ports | 2 x Auto-sensing 10/100 Mbps ports (RJ45 connector) , 1x WAN, 1xLAN or 2xLAN configurable |
| Protection | Surge 2KV ESD ±15kV IEC61000-4-2 Air Discharge ESD ±15kV Human Body Model |
| Cellular Interface | |
| Cellular module Slots | 1 x mPCIe slot for Cellular module |
| Number of SIMs | 1 |
| SIM Format | Micro SIM (12mm*15mm) |
| Cellular Antenna Connector | SMA |
| Band Options | US model: 4G LTE FDD@ B2/B4/B12/B13; 3G WCDMA@ B2/B4/B5; Carrier Approval: Verizon, AT&T EU model: 4G LTE FDD@ B1/B3/B7/B8/B20/B28A; 4G LTE TDD@ B38/B40/B41; 3G WCDMA@ B1/B8; 2G GSM@ B3/B8; AU model: 4G LTE FDD@ B1/B2/B3/B4/B5/B7/B8/B28; 4G LTE TDD@ B40; 3G WCDMA@ B1/B2/B5/B8; 2G GSM@ B2/B3/B5/B8;Other options please contact Elastel representative. |
| USB Host | |
| USB 2.0 | 1 x USB 2.0, type-A connector |
| Power output | 5V@500mA |
| Protection | Output Over Load protection ESD ±8kV IEC61000-4-2 Air Discharge ESD ±6kV Human Body Model |
| Other Interface | |
| Console Port | 1 x UART type-C connector |
| Buttons | 1x button for Reset and Upgrade |
| Power Parameters | |
| Standard Power | DC 12V/1.5A |
| Input Voltage | 9 ~ 48 VDC, 12 ~ 30 VAC |
| Power Consumption | Working Mode: 6 W Peak Power: <10 W |
| Protection | Overvoltage & polarity reverse protection Surge 4KV ESD ±15kV IEC61000-4-2 Air Discharge ESD ±15kV Human Body Model |
| Indicators | |
| LED Indicators | Power x 1, System (programmable) x1, Cellular WAN x1, WAN x1, COM<x> trans x 8 (TX + RX) |
| Cellular LED status | Searching network: Slow flashing (200ms ON/1800ms OFF) Idle Status: Slow flashing (1800ms ON/200ms OFF) Transmission: Fast flashing (125ms ON/125ms OFF) |
| Buzzer | Built-in buzzer x 1, for Warning alarm ( Programmable) |
| Reliability | |
| Alert Tools | External RTC (real-time clock) |
| Automatic Reboot Trigger | External WDT (watchdog timer) |
| Physical Characteristics | |
| Dimensions | 128.8mm×117mm×28mm (L×W×H) |
| Housing | Metal |
| Installation | DIN-rail mounting Wall mounting |
| Weight | 470 g (1.04 lb) |
| Environmental Limits | |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Package Contents | |
| Device | 1 x EG324 Lite IoT Gateway with Terminal Block preinstalled |
| Antenna | Mag-mount Cellular Antenna (SMA Male, 1 meter, 12dBi) |
| Installation Kit | 1 x DIN-rail kit |
| Power Adapter | DC 12V/1.5A (optional) |
| Warranty | |
| Warranty Period | 1 year |
