EG410 IoT Gateway
$316.00 – $395.00
Elastel EG410 is an industrial IoT Edge Gateway designed for IoT applications. Powered by Raspberry Pi Compute Module 4 (CM4) with our rugged, industrial-grade carrier board, and whole Aluminum fanless cooling technology, it’s the Raspberry Pi IoT solution for you apply in Industrial Gateway, Automation Controller, Data Acquisition and Edge Computing…
- ★ Raspberry Pi CM4 variant Edition Available.
- ★ 1GbE WAN/LAN, 4G LTE/3G/2G/NB-IoT, LoRaWAN (via miniPCIe) optional.
- ★ Industrial-grade design with RS232/RS485/DI/DO.
Description
Leverages Raspberry Pi CM4 powerful and flexible computing capability, equipped with our industrial-grade PCB and and efficient fanless cooling enclosure, EG410 was designed for easy deployment of typical industrial applications.
Since 2021, EG410 was applied in IoT Edge application such as smart grid, transportation management, public utilities remote monitoring and control, digital signage, and industrial automation .... by thousands of Elastel partners.
With 4G LTE/3G/2G/CAT M1(eMTC) and NB-IoT cellular network enabled, LoRaWAN(optional via miniPCIe), Dual-band 2.4GHz/5GHz Wi-Fi, Gigabit Ethernet diverse network connectivity, and Optimized Raspbian/OpenWRT based OS, you can easily setup the interoperation with cloud service.
Rich Industrial Interfaces and Protocols
Born for the diversified IoT industry, EG410 is compatible with a rich selection of industrial ports and protocols for data acquisition and control. Like Modbus RTU, Modbus TCP, OPC UA, Siemens S7, etc.
- Isolated Serial Port 1x RS485 and 1x RS232
- Industrial-grade isolated 2x DI and 2x DO
- 1x 10/100/1000Mbps Gigabit Ethernet Port
- 1x Up to 4kp60 supported HDMI output
- 2x High-Speed USB 2.0 Ports for peripherals
- Wide Range Voltages Power supply 9~36V DC/1A
- 1 x M.2 socket with 2280 NVME SSD support
Highly-reliable and Diverse Wireless Network
EG410 offers multiple network connectivity: global cellular 4G/LTE, Gigabit Ethernet, Wi-Fi, etc. With built-in multi-layer link detection and failover mechanism ensures the remote devices are highly reliably and continuously connected.
- Worldwide carrier 4G/LTE, 3G, NB-IoT cellular network
- Dual-band 2.4GHz/5GHz Wi-Fi
- Local Bluetooth for easy configuration
- LoRa, Zigbee Compatible via mini-PCIe
Fully Industrial-grade Design
From computing module, communication module to each electronic components, EG410 adopts strict industrial grade standards. Meeting industrial grade on harsh environmental conditions of industrial fields.
- Operating Temperature: -25°C to +70°C

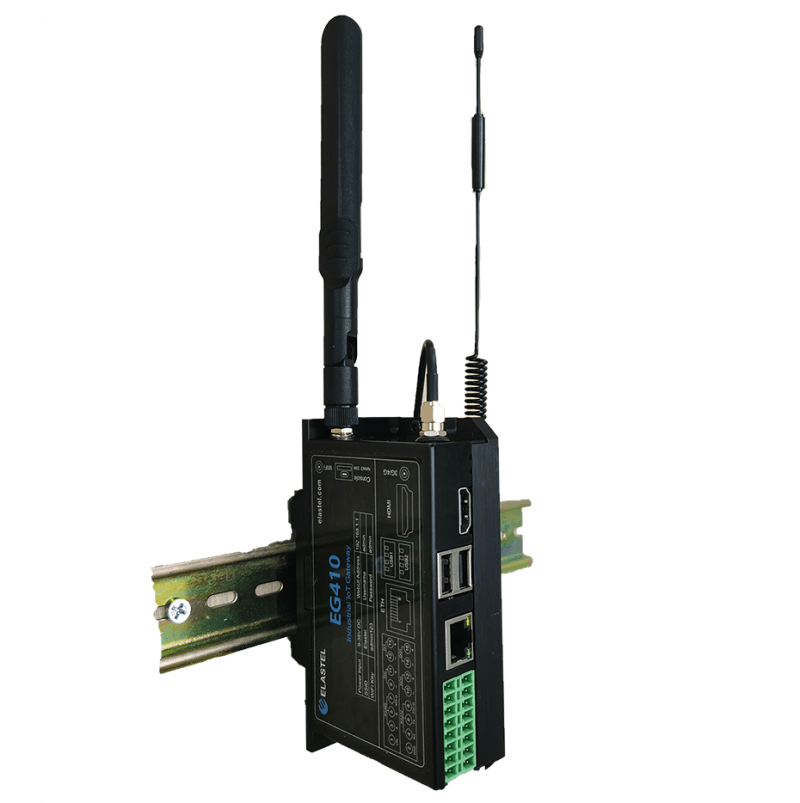

- 35mm DIN-Rail and wall mount Supported
- EMC & ESD Protection, 1.5 kV RMS Ports Isolation.
- Built-in RTC with supercap
Powerful Computing & Elastic Program Platform
Benefit from Raspberry Pi CM4 high-performance computing capability and Operation System compatibility, it's easy to build up your specific applications programs with SDK provided by Elastel.
- ARM Cortex-A72 Quad-core processor 1.5GHz, 2GB RAM + 8GB eMMC (diverse RAM and Storage optional)
- Raspbian/OpenWRT Based Linux OS, Docker, Node-RED, Python... available
- Pre-compiled software bundled for common application like data acquisition, Modbus collection, MQTT...
- Easy interoperate with IoT Ecosystem like Microsoft AZURE, Amazon AWS, AliCloud, ThingsBoard platforms, etc.
Applications
With the Raspberry Pi CM4 running up to 1.5GHz computing capability, and flexible Linux Operating System, EG410 could be in any kinds of your applications and PoC.
Edge computing Gateway
Data collecting from slave devices, analyzing and storing. And with flexible configuration, it is perfect as a protocol and interface converter Gateway.
Industrial modem and cellular Router
With a built-in cellular module, EG410 can be configured as an industrial modem and router operating in 4G/LTE, 3G, NB-IoT mobile network. Easily remote access in by build a VPN or a defined public IP.
Programmable Logic Controller (PLC)
With Serial ports and DI & DO ports available, and take advantage of Software-defined PLC, EG410 can easily operate as a typical PLC.
Micro Server Computer
The Compact and high reliability design with HDMI port, allows EG410 operate as a micro server. Raspberry Pi compatibility and Linux OS provides computer operation possibility.
Specification
Check the Specifications Tab for more details.Specifications
| Hardware platform | |
| CPU | Broadcom BCM2711, Quad-core A72 (ARM v8)@ 1.5 GHz |
| Memory | 2GB (1GB/4GB/8GB optional) LPDDR4 |
| FLASH | 8GB (16GB/32GB optional) eMMC |
| Network & Interfaces | |
| Ethernet | Gigabit Ethernet x 1, (1-WAN or 1-LAN Configurable) |
| Cellular | 4G LTE / 3G / 2G / NB-IoT / CAT-M1 |
| Wi-Fi | Dual-band 2.4GHz/5GHz 802.11b/g/n |
| Bluetooth | Supported |
| GPS | Cellular Module built-in supported (Optional) |
| SIM | 1.8 V/3 V; drawer-type Nano card holder × 1 |
| 15KV ESD Protection | |
| Antenna | 4G: inside SMA x 1、WiFi/Buletooth: inside SMA x 1 |
| Industrial Serial Port | RS-232 x 1，RS-485 x 1; |
| RS-232 signal: TXD, RXD, GND; RS-485 signal: A, B, GND; ESD protection: 15KV | |
| I/O | 2-channel digital input DI |
| 2-channel digital/pulse output DO | |
| USB | USB 2.0 x 2 for peripherals, |
| USB-C x 1 for Power supply and Console | |
| HDMI | HDMI 2.0 x 1, (Up to 4kp60 video & audio output) |
| Additional drive | 1 x M.2 socket with 2280 NVME SSD support |
| Standalone Watchdog timer | |
| Power | |
| Power supply | Wide Range Voltages 9~36V DC/1A |
| Power Terminal | Unpluggable industrial terminal connection |
| Power consumption | Less than 10 W (system) |
| (Optional) Real-time clock (RTC) | Embedded RTC, power supply with a supercapacitor |
| Mechanical features | |
| Protection | IP30 |
| Housing | Aluminum Heatsink |
| Cooling | Fanless cooling |
| Dimensions (cm) | 124mm x 76mm x 35mm |
| Installation | DIN-rail, wall mounting |
| Ambient temperature and humidity | |
| Storage temperature | -30 ~ 75°C |
| Ambient humidity | 5 ~ 95% (non-condensing) |
| Operating temperature | -25 ~ 70°C (industrial grade) |
| EMC index | |
| Static electricity | level 3 |
| Radiated electric field | level 3 |
| Surge | level 3 |
| Others | |
| Certification | CE |
| Warranty | Standard 12 Months |
| Software Features | |
| OS | Raspbian with SDK /OpenWRT V21 |
| Configuration | WebUI, Local CLI, Remote configuration |
| Upgrade operate | Local USB upgrade and remote upgrade (optional) |
| Timed startup and shutdown | Supported |
| Application features | Data Acquisition, Modbus RTU, VPN, Router, Firewall, Media Player… |
| Python, Node-RED, Docker…, Support Secondary Development. | |
| OpenVPN, L2TP, PPTP, IPSec, WireGuard VPN, ZeroTier… | |
| Network Features | WWAN and WAN Failover, Load Balance, |
| PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, | |
| DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, | |
| Modbus RTU/TCP, HTTP, MQTT, ARP, QoS, SNTP, Telnet, SSH | |
