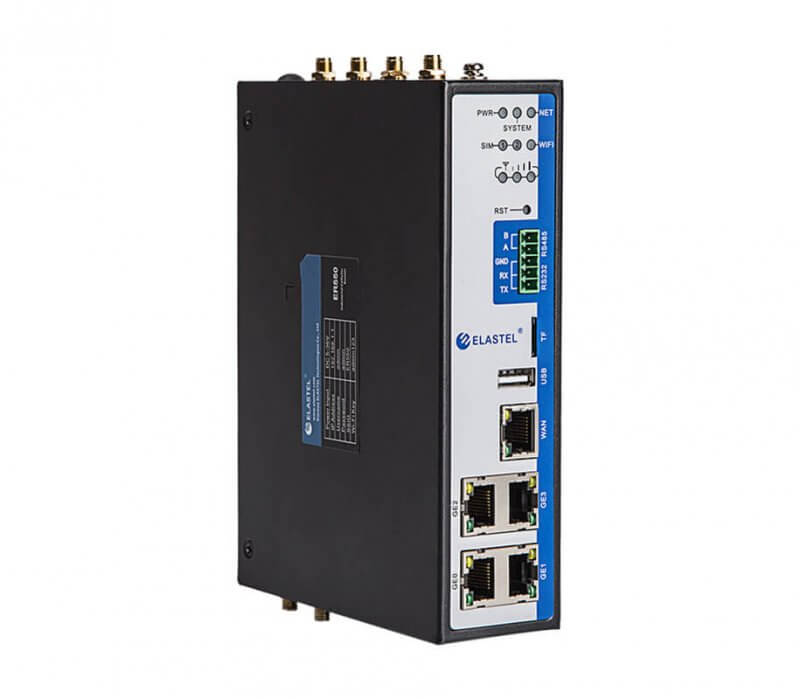

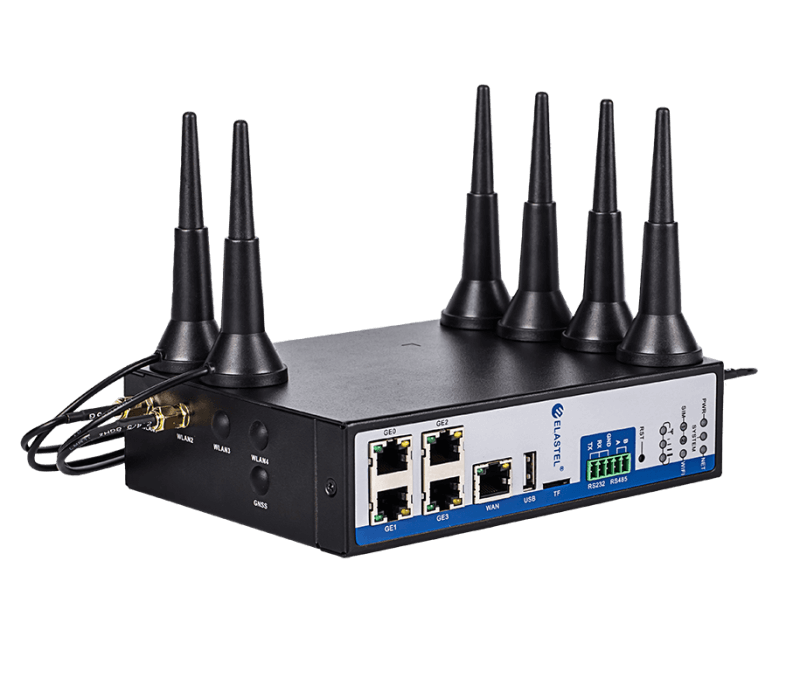

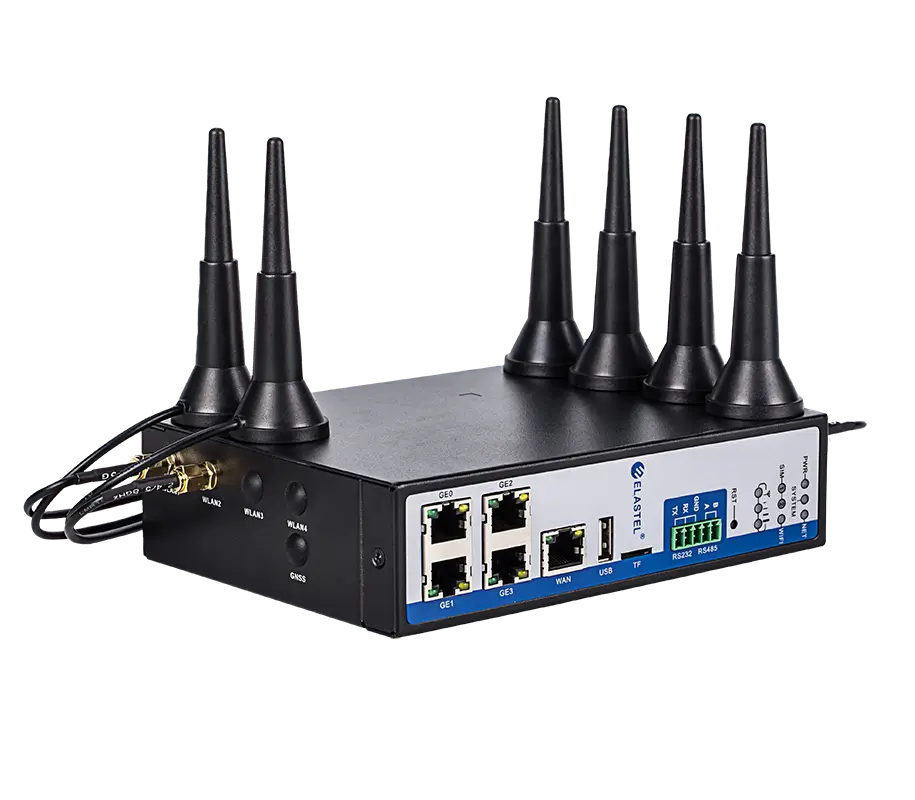

ER550 Industrial Dual-SIM 5G Router
$760.00 – $770.00
The Elastel Elink series industrial router ER550, is a dual-SIM 5G Gigabit router that integrates global 5G, and compatible 4G & 3G, with 5x 10/100/1000 Mbps GbE ports and dual-band Wi-Fi support, also extended 1xRS232 and 1xRS485 serial ports for industrial usages.
- ★ Dual-SIM seamlessly failover for Global 5G/ 4G LTE/ 3G cellular networks
- ★ 5x 10/100/1000 Mbps Gigabit Ethernet ports (1-WAN 4-LAN, or 5-LAN)
- ★ 2.4G & 5.8G Hz Dual-band Wi-Fi, Up to 866.7Mbps speed
- ★ Dual-core ARM Cortex-A53@ 1GHz CPU, 512MB RAM + 4GB eMMC, with OpenWrt based OS
- ★ Industrial rugged and reliablity, -35°C to +75°C Operating Temperature
Description
ER550 is an industrial 5G cellular Router designed by Elastel. Powered by high-performance dual-core ARM-based CPU @1GHz, 512MB RAM and 4G eMMC flash hardware platform, leverage high-speed 5G technology, equip with 5x Gigabit Ethernet ports, 2.4G & 5.8G Hz dual band Wi-Fi, and dual-SIM failover/backup mechanism, allows ER550 providing a high-speed, reliable, uninterrupted network for your edge infrastructure.
Besides, extended 1xRS485 + 1xRS232 with prebuilt Modbus and common industrial protocols data acquisition programs, also running on OpenWrt-based OS offering flexible secondary program capability, makes the ER550 not just a high speed 5G router, but also a powerful IIoT Gateway for your industrial data processing and communication applications.
Fully Industrial Design
With quality and reliability in mind, ER550 is born for industrial applications.
- Operating Temperature from -35°C to +75°C
- 15KV ESD, 1.5KV EMC, 2KV Surge Protection
- 9-36VDC wide power input with over-current/voltage & anti-reverse protection
- Dual SIM, dual power input, dual (DIN-rail & Panel) mounting redundancy design
- External RTC and WDT, MTBF ≥100,000 Hours
Applications
With compact industrial housing, the reliable connectivities , and flexible Linux OS, ER550 could be in any kinds of your applications like below our success customers cases.
Smart ATM monitoring
5G for Telemedicine
Remote Traffic monitoring
Specifications
| Hardware Platform | |
| CPU | Dual-core ARM Cortex-A53@ 1GHz |
| DRAM | 512MB DDR3 |
| Storage | 4GB eMMC |
| Wireless | |
| Cellular | 5G Sub-6 SA/NSA, 4G LTE, 3G WCDMA |
| SIM Slot | Dual SIM, 15KV ESD protection |
| Wi-Fi | Dual Band 2.4GHz & 5.8GHz Wi-Fi |
| WiFi 6 | Optional |

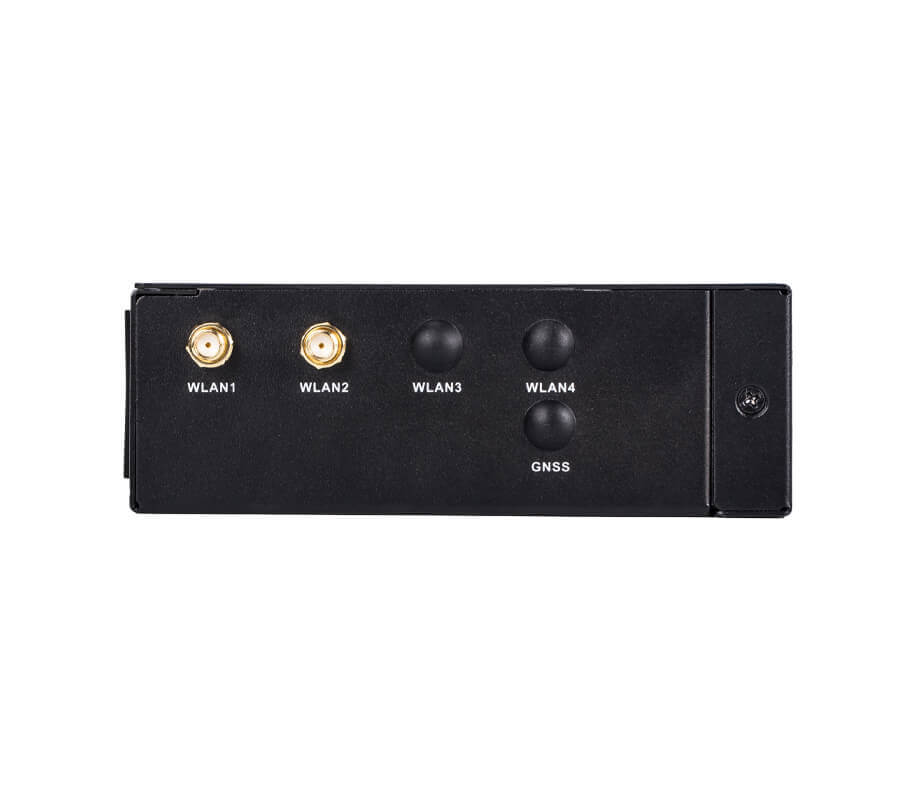

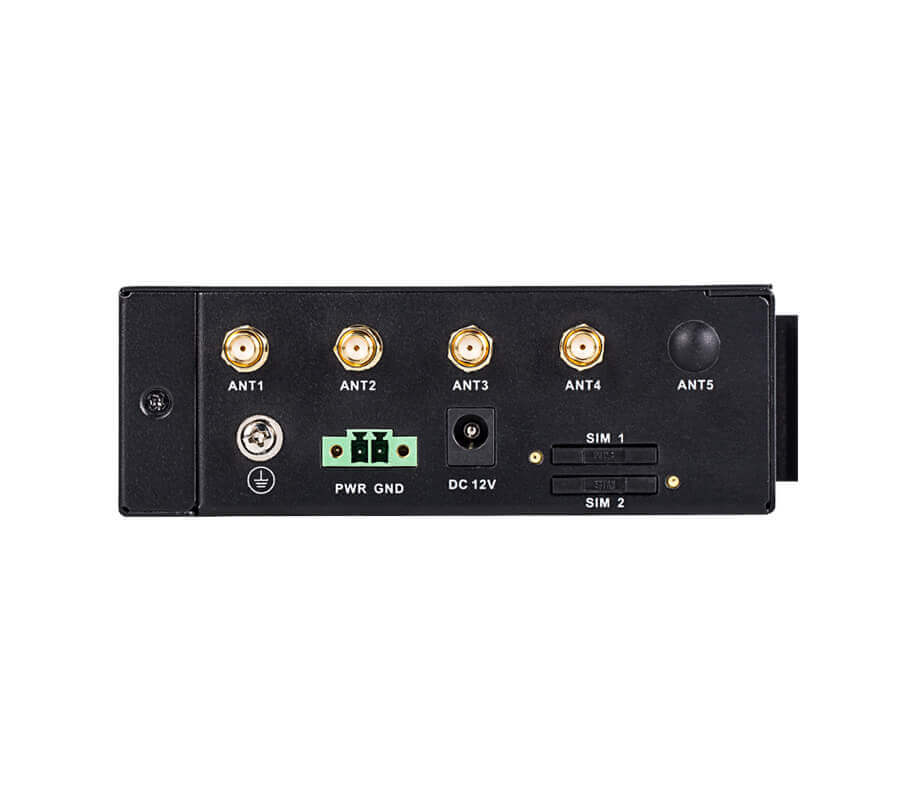

| Antenna Connector | 4x 5G/4G Cellular SMA, 2x Wi-Fi SMA (3 Reserved for extra Wi-Fi and GPS) |
| Interfaces | |

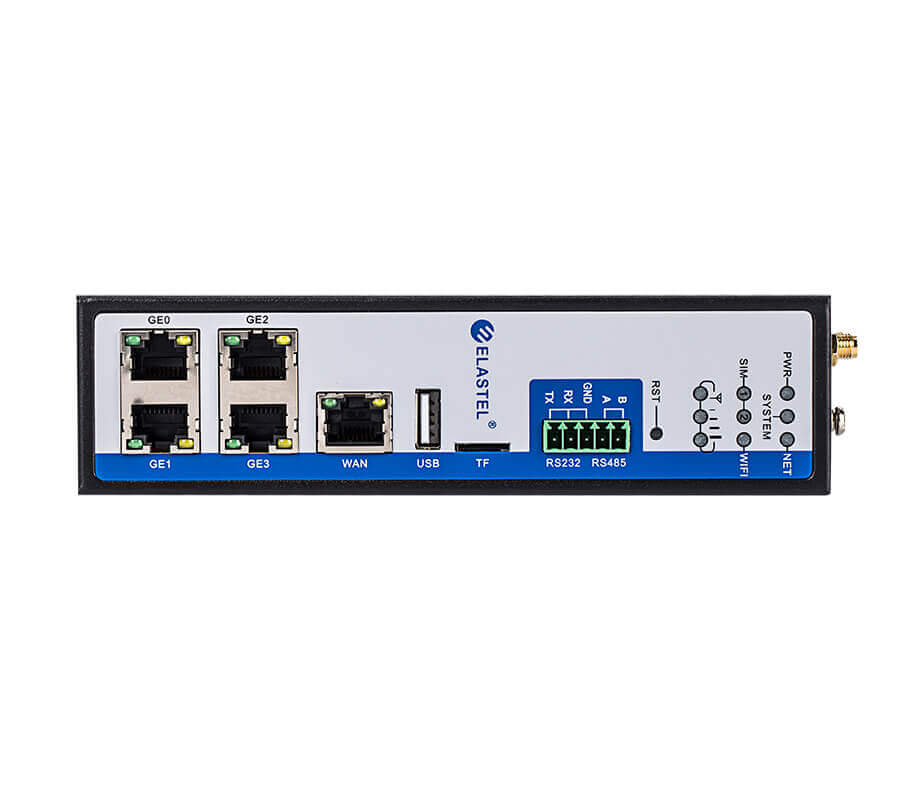

| Ethernet Port | 5 x 10/100/1000 Mbps GbE for LAN/WAN configurable; 1.5KV network isolation transformer protection; |
| Serial Port | 1-RS232, 1-RS485; 5-PIN industrial terminal block; 15kV ESD protection; |
| USB Port | 1x USB2.0 |
| TF Card | 1x TF Card slot |
| Reset Button | 1x Pinhole reset button |
| Power Parameters | |
| Power Supply | DC9 ~ 36V, over-current protection, anti-reverse connection; 2 PIN terminal block and Jack connector; |
| Power Consumption | Working Mode: 500~700mA@12V DC; Standby Mode: 300~500mA@12V DC; |
| Indicators | |
| LED Indicators | 9 LEDs ( Power, System, NET, SIM1/SIM2, WiFi, 3x Signal Strength) |
| Physical Characteristics | |
| Dimensions | 126 × 44 x 166 mm (L×W×H) |
| Housing | IP30 Metal |
| Installation | DIN-rail mounting Panell mounting |
| Weight | 670g |
| Environmental Limits | |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | -35 to 75°C (-31 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Reliability | |
| Alert Tools | External RTC with Backup button battery |
| Automatic Reboot Trigger | Hardware WDT (watchdog timer) |
| Package Contents | |
| Device | 1 x ER550 device with Terminal Block preinstalled |
| Antenna | 4x Mag-mount Cellular Antenna (SMA Male, 1 meter, 12dBi), 2x Mag-mount WI-FI Antenna |
| Installation Kit | Panel mount kits (DIN-rail mount kits optional) |
| Power Adapter | DC 12V/2A (optional) |
| Software Features | |
| OS | ElastOS (OpenWRT based) with Serial-to-IP Data Acquisition programs |
| Configuration management | WebUI, Local CLI, Remote configuration, factory reset/backup, Syslog local/remote export |
| Network Protocols | PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH… |
| VPN | PPTP, L2TP, GRE, IPSEC VPN (IKEv1/IKEv2), OPENVPN protocols, Supports CA digital certificate |
| Serial to IP | Modbus RTU/TCP Data acquisition, MQTT, HTTP, OPC UA, BACnet |
| Reliability & Security | WWAN and WAN Failover, multi-layer detection and auto recovery mechanism, firewall, ACL, port mapping, virtual IP mapping, IP-MAC binding |
| Secondary Development | OpenWrt based OS with SDK support |
| Warranty | |
| Warranty Period | 2 year |
