ER500 Industrial Dual-SIM Cellular Router
$215.00 – $265.00

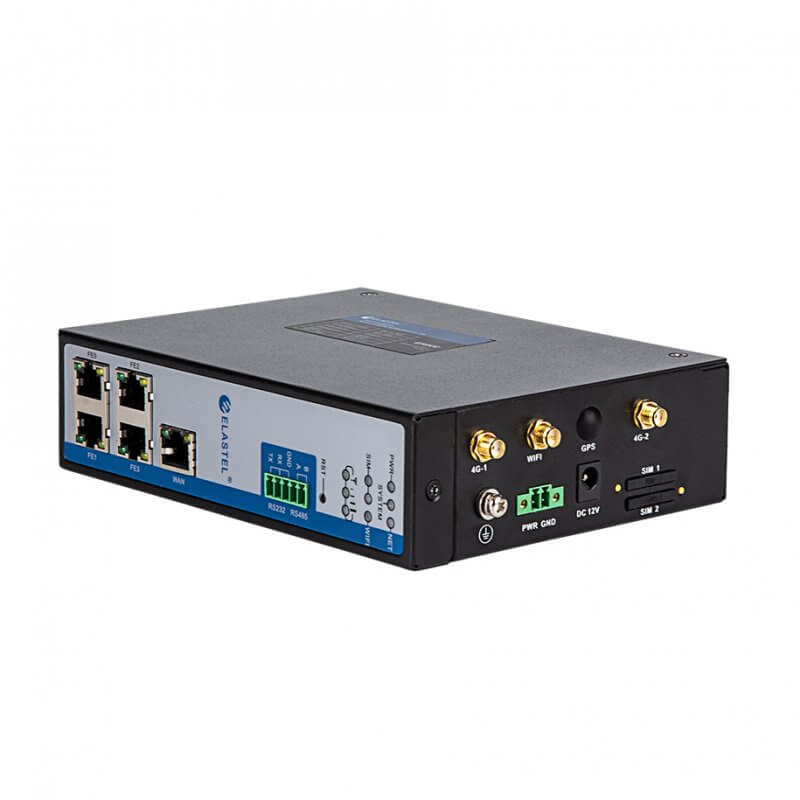

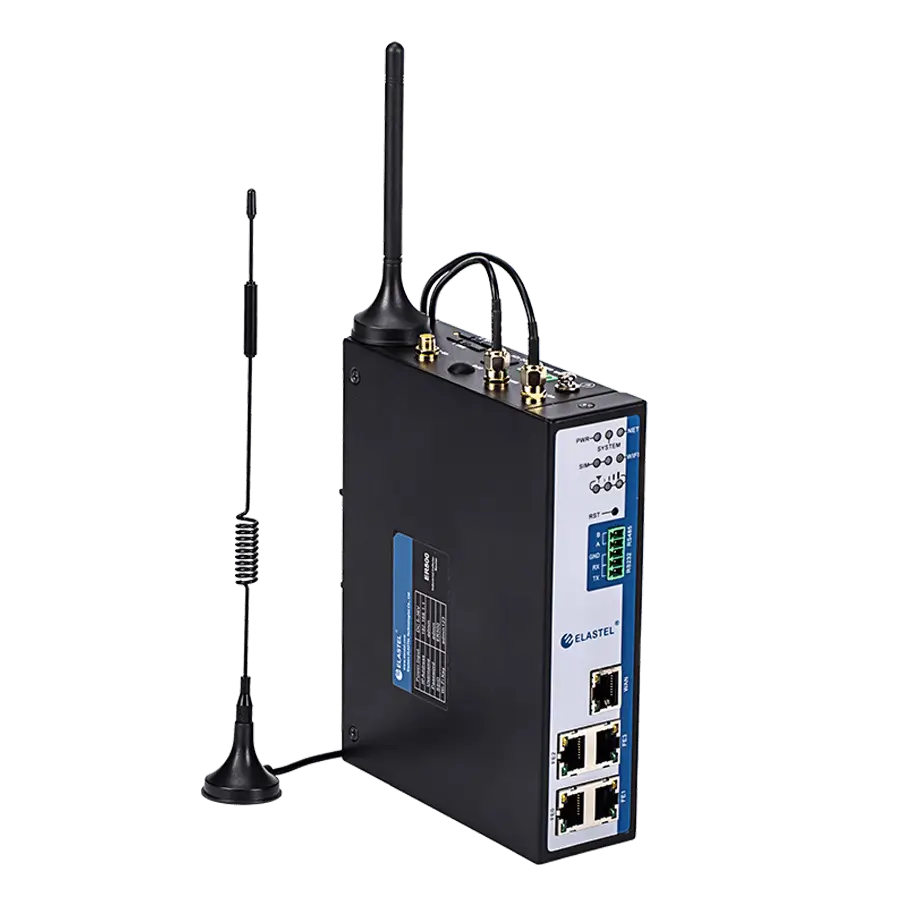

The Elastel Elink series industrial cellular router ER500, is a dual-SIM cellular router that integrates global 4G LTE, with 5x 10/100 Mbps Ethernet ports and Wi-Fi support, also extended 1xRS232 and 1xRS485 serial ports for industrial usages.
- ★ Dual-SIM seamlessly failover for Global 4G LTE/ 3G/ 2G networks
- ★ 5x 10/100 Mbps ETH ports (1-WAN 4-LAN, or 5-LAN), Wi-Fi integrated
- ★ Easy-to-use webUI with prebuilt Serial-to-IP data SCADA features
- ★ -35°C to +75°C Operating Temperature, Industrial rugged and reliablity
Description
Designed to support dual-SIM for global 4G LTE networks, ER500 Seamlessly switch between SIM cards to ensure uninterrupted connectivity and reliability. Offering 5x ETH ports, Wi-Fi, serial ports, and equipped with an OpenWRT based configurable OS, enabling smooth data transmission and compatibility with a wide range of devices in any kinds of industrial applications.
With full industrial-grade design, built-in hardware watchdog, multi-layer software failover, backup and auto recovery mechanism. Running on an OpenWRT based OS, and prebuilt web configuration Serial-to-IP data acquisition features, guarantee this ruggedized cellular router reliably working on variety applications in your industrial environment.
Highly-reliable Uninterrupted Network
With Dual SIM failover and Elastel Elink Seamlessly backup technology, ER500 provides an uninterrupted connectivity for maximizing your productivity and eliminating downtime.
Fully Industrial Design
From each electronic parts to structure design, the ER500 is born for industrial to ensure most reliablity under harsh industrial conditions.
- Operating Temperature from -35°C to +75°C
- 15KV ESD, 1.5KV EMC, 2KV Surge Protection
- Power over-current/voltage & anti-reverse protection
- DIN-rail & Panel mounting support
- External RTC and WDT, MTBF ≥100,000 Hours
Easy Web Management Firmware
Leverage ER500 web-based set-up interface, the configuration and large-scale Deployment become easy and fast
- Optimized OpenWRT based OS with common configuration preset
- multiple VPN and common apps available
- Web-based visible settings for Modbus Serial-to-IP data acquisition features
- Easy remote management and interoperation via SNMP, MQTT...
Applications
With compact industrial housing, the reliable connectivities , and flexible Linux OS, ER500 could be in any kinds of your applications like below our success customers cases.
Reliable network for EV Charging
Air compressor monitoring over uninterrupted LTE
Remote Intelligent Traffic Enforcement
Specifications
| Hardware Platform | |
| CPU | MediaTek@ 580MHz |
| DRAM | 128MB DDR2 |
| Storage | 32MB |
| Wireless | |
| Cellular module Slots | 1 x mPCIe slot for Cellular module |
| SIM Slot | 2 x Mini SIM (25mm*15mm); 15KV ESD protection |
| Band Options | NA: 4G LTE FDD@ B2/B4/B12/B13; 3G WCDMA@ B2/B4/B5; Carrier Approval: Verizon, AT&T EMEA/APAC: 4G LTE FDD@ B1/B3/B7/B8/B20/B28A; 4G LTE TDD@ B38/B40/B41; 3G WCDMA@ B1/B8; 2G GSM@ B3/B8; ANZ/LATAM: 4G LTE FDD@ B1/B2/B3/B4/B5/B7/B8/B28; 4G LTE TDD@ B40; 3G WCDMA@ B1/B2/B5/B8; 2G GSM@ B2/B3/B5/B8;Other options please contact Elastel representative. |
| Wi-Fi | IEEE 802.11b/g/n, 150Mbps |
| Wi-Fi mode | Support AP and Client modes |

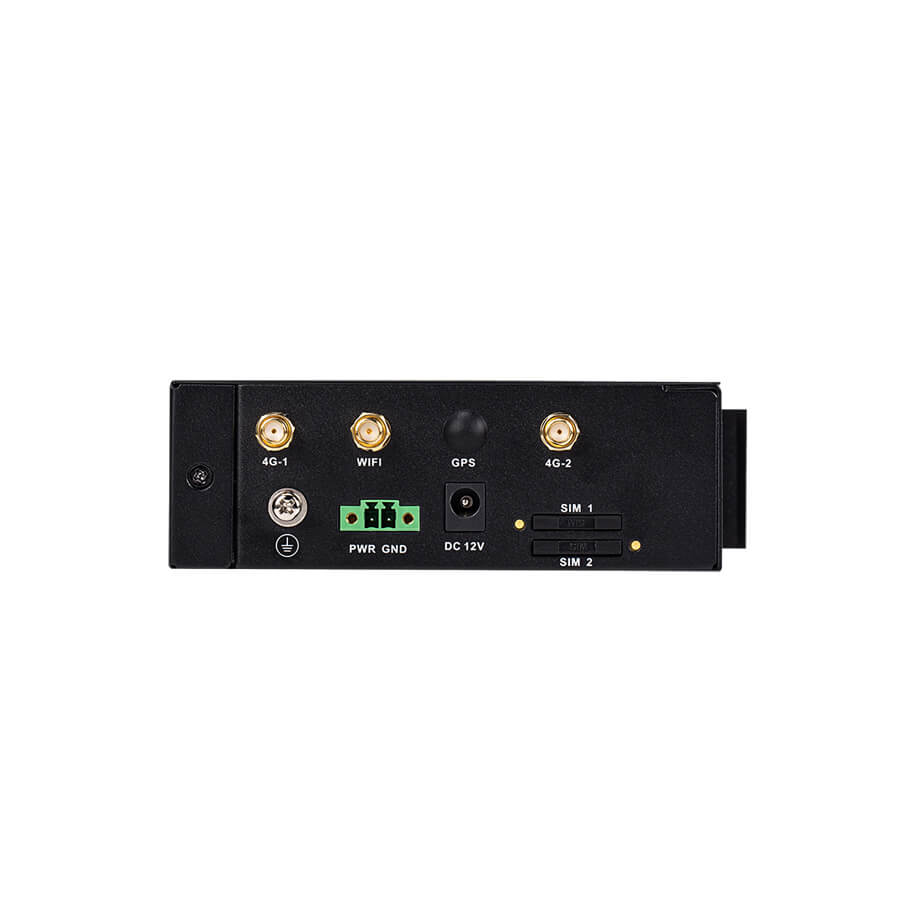

| Antenna Connector | 2x 4G Cellular, 1x Wi-Fi, 1x GPS (Reserved) |
| Interfaces | |

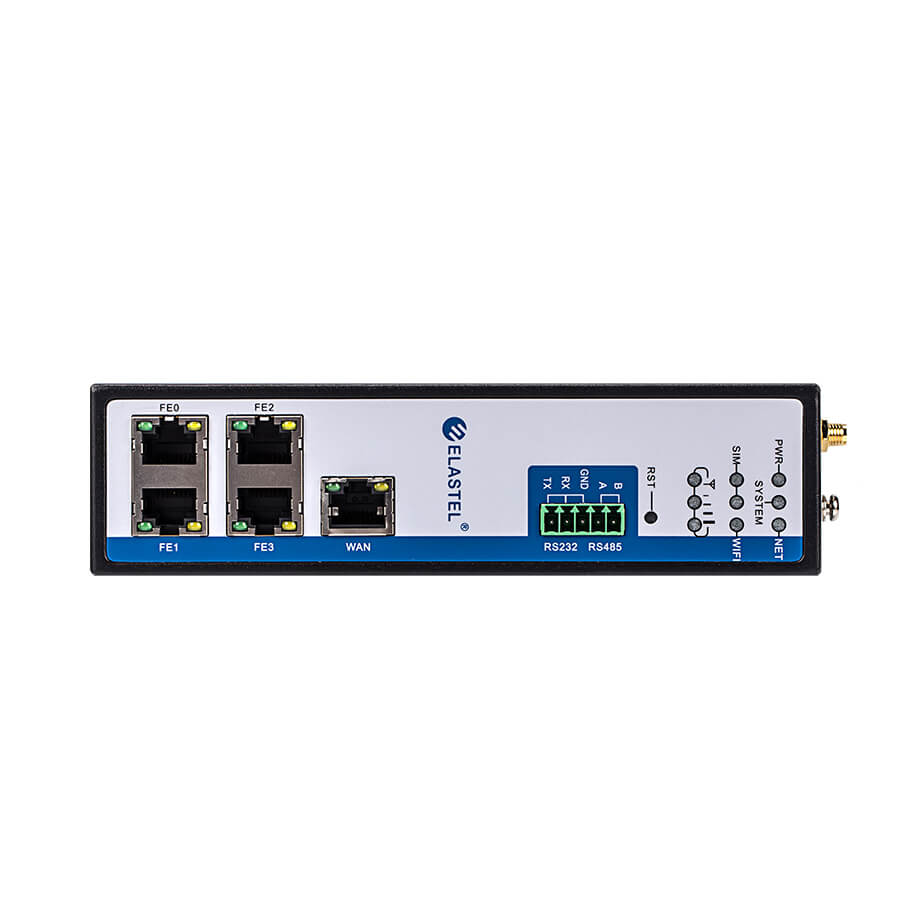

| Ethernet Ports | 5 x 10/100 Mbps Ethernet for LAN/WAN configurable; 1.5KV network isolation transformer protection; |
| Serial Ports | 1-RS232, 1-RS485; 5-PIN industrial terminal block; 15kV ESD protection; |
| Reset Button | 1x Pinhole reset button |
| Power Parameters | |
| Power Supply | DC5-36V, over-current protection, anti-reverse connection; 2 PIN terminal block and Jack connectors; |
| Power Consumption | Working Mode: 250~310mA@12V DC; Standby Mode: 150~230mA@12V DC; |
| Indicators | |
| LED Indicators | 9 LEDs ( Power, System, NET, SIM1/SIM2, WiFi, 3x Signal Strength) |
| Physical Characteristics | |
| Dimensions | 126 × 44 x 166 mm (L×W×H) |
| Housing | IP30 Metal |
| Installation | DIN-rail mounting Panell mounting |
| Weight | 670g |
| Environmental Limits | |
| Ambient Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | -35 to 75°C (-31 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Reliability | |
| Alert Tools | External RTC with Backup button battery |
| Automatic Reboot Trigger | External WDT (watchdog timer) |
| MTBF | ≥100,000 Hours |
| Package Contents | |
| Device | 1 x ER500 device with Terminal Block preinstalled |
| Antenna | 2x Mag-mount Cellular Antenna (SMA Male, 1 meter, 12dBi),
1x RP-SMA WIFI Antenna |
| Installation Kit | Panel mount kits (DIN-rail mount kits optional) |
| Power Adapter | DC 12V/1A (optional) |
| Software Features | |
| OS | ElastOS (OpenWRT based) with Serial-to-IP Data Acquisition programs |
| Configuration management | WebUI, Local CLI, Remote configuration, factory reset/backup, Syslog local/remote export |
| Network Protocols | PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH… |
| VPN | PPTP, L2TP, GRE, IPSEC VPN (IKEv1/IKEv2), OPENVPN protocols, Supports CA digital certificate |
| Serial to IP | Modbus RTU/TCP Data acquisition, MQTT, HTTP, OPC UA |
| Reliability & Security | WWAN and WAN Failover, multi-layer detection and auto recovery mechanism, firewall, ACL, port mapping, virtual IP mapping, IP-MAC binding |
| Secondary Development | OpenWrt based OS with SDK support |
| Warranty | |
| Warranty Period | 1 year |
