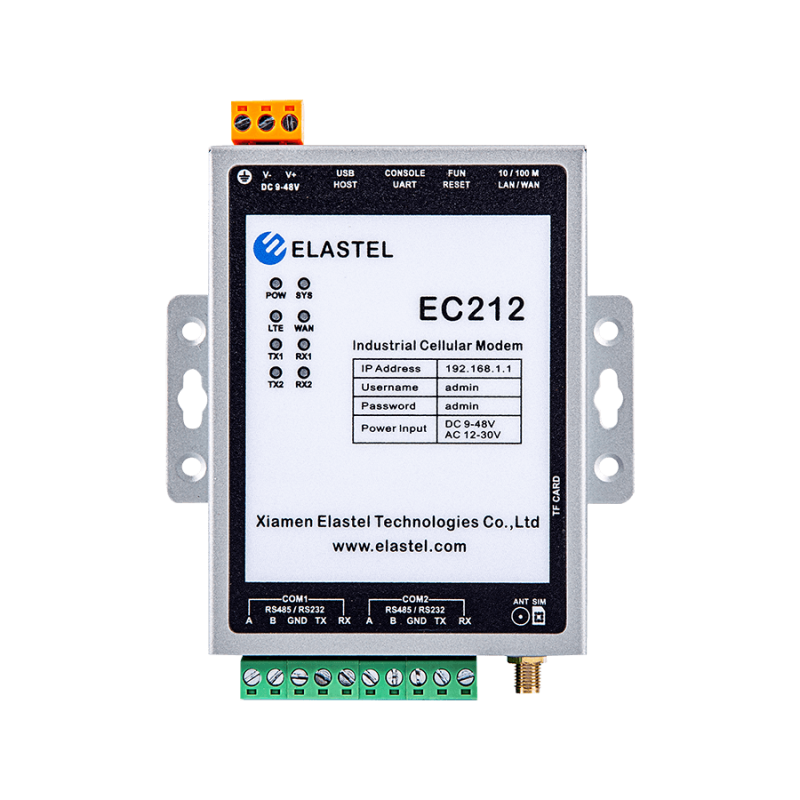

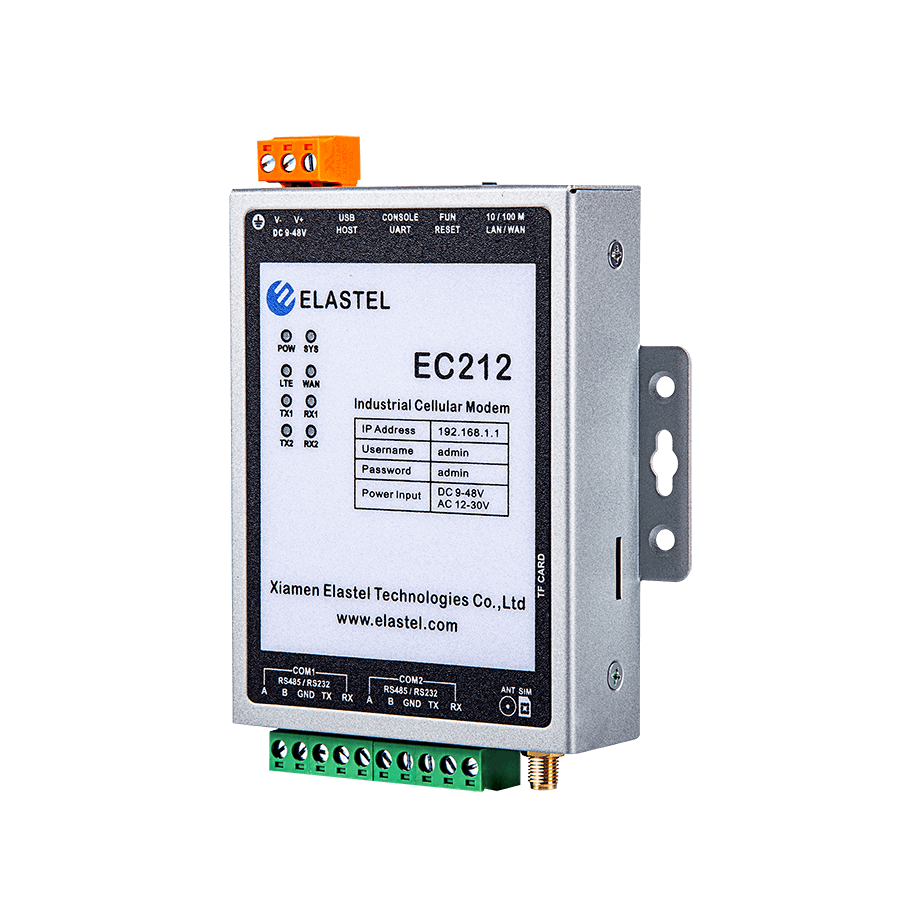

EC212 Industrial DTU
$99.00 – $145.00The Elastel EC212 is a compact industrial DTU modem for Edge Connectivity data acquisition, Modbus Gateway, and communication applications.
- ★ 2x Isolated RS485/RS232 for industrial edge connectivity
- ★ 1x auto-sensing 10/100 Mbps Ethernet for LAN/WAN configurable
- ★ Built-in mPCIe slot for 4G LTE/3G/2G/NB-IoT/Cat M1 Cellular Network
- ★ Enhanced surge protection & Hardware Watchdog for reliablity
- ★ -40°C to +85°C Operating Temperature.
These versatile capabilities let EC212 perfect for Serial & Ethernet to Cloud over cellular network applications, or Serial-to-Ethernet gateway, etc.
- ★ 2x Isolated RS485/RS232 for industrial edge connectivity
-
EG324 IoT Gateway
$189.00 – $235.00The Elastel EG324 is an Arm-Based IoT Gateway provide a high-performance computing platform for embedded data acquisition and communication applications.
- ★ Armv7 Quad-core Cortex-A9 1.4 GHz CPU, 512MB RAM + 8GB eMMC
- ★ 4x Isolated RS485/RS232 for industrial data acquisition
- ★ Dual auto-sensing 10/100 Mbps Ethernet
- ★ Mini-PCIe slot for 4G LTE/3G/2G/NB-IoT/Cat M1 Cellular Network
- ★ -40°C to +85°C Operating Temperature.
These versatile capabilities let users efficiently adapt the EG324 to a variety of complex communications solutions.
-
EG324 Lite IoT Gateway
$155.00 – $199.00The Elastel EG324 Lite IoT Gateway is an ARM-based IoT gateway reduced CPU and RAM capabilities from EG324 for balancing sufficient performance and cost saving.
- ★ ARM Dual-core A35@800MHz CPU, 128MB RAM + 8GB eMMC
- ★ 4x Isolated RS485/RS232 for industrial data acquisition
- ★ Dual auto-sensing 10/100 Mbps Ethernet
- ★ Mini-PCIe slot for 4G LTE/3G/2G/NB-IoT/Cat M1 Cellular Network
- ★ Linux OS with prebuilt Web-based data acquisition programs
These features allow EG324 Lite easy be configured and large-scale deployments for data acquisition, remote monitoring and communication… applications.
-
EG410 IoT Gateway
$316.00 – $395.00Elastel EG410 is an industrial IoT Edge Gateway designed for IoT applications. Powered by Raspberry Pi Compute Module 4 (CM4) with our rugged, industrial-grade carrier board, and whole Aluminum fanless cooling technology, it’s the Raspberry Pi IoT solution for you apply in Industrial Gateway, Automation Controller, Data Acquisition and Edge Computing…
- ★ Raspberry Pi CM4 variant Edition Available.
- ★ 1GbE WAN/LAN, 4G LTE/3G/2G/NB-IoT, LoRaWAN (via miniPCIe) optional.
- ★ Industrial-grade design with RS232/RS485/DI/DO.
-
EG500 Edge Computing Gateway
$375.00 – $540.00Elastel EG500 is an industrial Edge computing Gateway designed for IoT applications. Powered by Raspberry Pi CM4. Expanded I/O ports for industrial needs, Diverse Connectivities options, and ture IPC-grade enclosure…, These allows it perfect for IoT Gateway, data acquisition, Industrial Controller, Edge Computing…. Applications.
- ★ 2xGbE , 4G LTE/3G/2G/NB-IoT, LoRaWAN/WiFi HaLow optional.
- ★ Industrial-grade DI/DO/AI/CAN-bus (optional)/RS232/RS485.
- ★ Hardware Watchdog, Network Failover, -25 ~ 70°C working temperature.
-
EG500 WiFi HaLow Gateway
$438.00 – $548.00Elastel EG500 IoT Gateway WiFi HaLow Edition is an industrial IoT Gateway designed for IoT applications those specially using 802.11ah WiFi HaLow technology. Leverage SX-NEWAH module from SilexTechnology, the first industrial EG500 is able to as a WiFi HaLow Gateway/Router for your IoT projects.
- ★ Powered by high-performance Raspberry Pi CM4.
- ★ Leverage SX-NEWAH module
- ★ GbE Wired, 4G LTE, 2.4G/5G WiFi for WAN connectivities.
- ★ Industrial-grade carrier board with RS232/RS485/DI/DO and enclosure.
-
ElastBox400 Industrial Computer
$199.00 – $349.00ElastBox400 is an industrial-grade edge computer designed for industrial IoT applications.
Powered by high-performance Raspberry Pi Compute Module 4, with 4G/LTE Compatible, dual Gigabit Ethernet, dual USB ports, and dual HDMI 4K Ultra HD output makes ElastBox suitable for Unattended Retail, Digital Signage, Public Transportation Advertising, NAS applications, etc.
-
ER200 Compact Industrial Cellular Router
$149.00 – $159.00The Elastel Elink series industrial cellular router ER200, is an IoT cellular router that integrates 4G LTE, Wi-Fi, and dual 10/100 Mbps Ethernet ports for IoT Edge Connectivity and communication applications.
- ★ Global 4G LTE/ 3G/ 2G, CAT4, CAT M1, NB-IoT networks compatible
- ★ 2x 10/100 Mbps ETH ports (1-WAN 1-LAN, or 2-LAN), Wi-Fi integrated
- ★ Compact size with DIN-Rail and panel mounting Supported
- ★ Plug-and-play, easy to use webUI for configuration and program
- ★ -35°C to +75°C Operating Temperature, Industrial rugged and reliablity
-
ER500 Industrial Dual-SIM Cellular Router
$215.00 – $265.00The Elastel Elink series industrial cellular router ER500, is a dual-SIM cellular router that integrates global 4G LTE, with 5x 10/100 Mbps Ethernet ports and Wi-Fi support, also extended 1xRS232 and 1xRS485 serial ports for industrial usages.
- ★ Dual-SIM seamlessly failover for Global 4G LTE/ 3G/ 2G networks
- ★ 5x 10/100 Mbps ETH ports (1-WAN 4-LAN, or 5-LAN), Wi-Fi integrated
- ★ Easy-to-use webUI with prebuilt Serial-to-IP data SCADA features
- ★ -35°C to +75°C Operating Temperature, Industrial rugged and reliablity
- ★ Dual-SIM seamlessly failover for Global 4G LTE/ 3G/ 2G networks
-
ER550 Industrial Dual-SIM 5G Router
$565.00 – $575.00The Elastel Elink series industrial router ER550, is a dual-SIM 5G Gigabit router that integrates global 5G, and compatible 4G & 3G, with 5x 10/100/1000 Mbps GbE ports and dual-band Wi-Fi support, also extended 1xRS232 and 1xRS485 serial ports for industrial usages.
- ★ Dual-SIM seamlessly failover for Global 5G/ 4G LTE/ 3G cellular networks
- ★ 5x 10/100/1000 Mbps Gigabit Ethernet ports (1-WAN 4-LAN, or 5-LAN)
- ★ 2.4G & 5.8G Hz Dual-band Wi-Fi, Up to 866.7Mbps speed
- ★ Dual-core ARM Cortex-A53@ 1GHz CPU, 512MB RAM + 4GB eMMC, with OpenWrt based OS
- ★ Industrial rugged and reliablity, -35°C to +75°C Operating Temperature
- ★ Dual-SIM seamlessly failover for Global 5G/ 4G LTE/ 3G cellular networks
-
EW8811 Wi-Fi Module
$30.00The Elastel EW8811 is a mini-PCIe type Wi-Fi Module powered by REALTEK RTL8811CU, support IEEE802.11a/b/g/n/ac protocols with 2.4GHz and 5.8GHz bands.
- ★ Compatible with all Elastel product models
- ★ 2.4GHz and 5.8GHz dual bands support
- ★ Mini-PCIe type interface easy installation and wide compatibility
- ★ -30°C to +85°C Operating Temperature.
- ★ Compatible with all Elastel product models
